Burocco 1AEC2IBES1D2角座阀电磁阀流量调节器安装说明

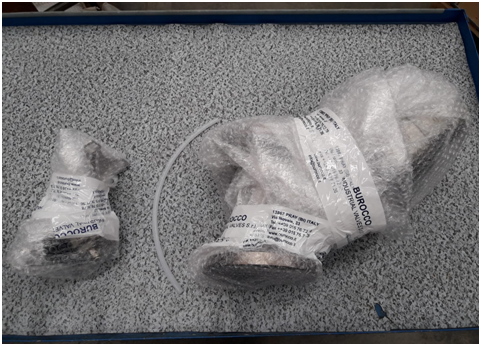

1) You have a pack with Solenoid Valve + flow regulator + plate  (on the left of the picture), a pack with the flanged valve and the hose.

您有一个带电磁阀+流量调节器+板的包装（在图的左侧），一个有法兰阀和软管的包装。

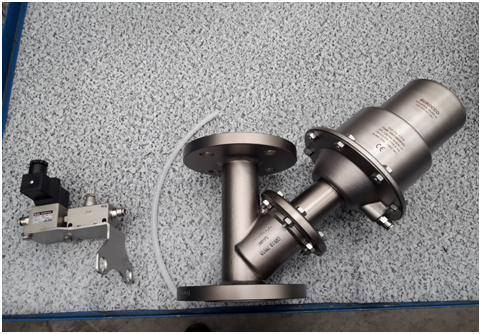

2)You can see that the solenoid valve and the flow regulator are already set on the plate

您会看到电磁阀和流量调节器已经安装在板上

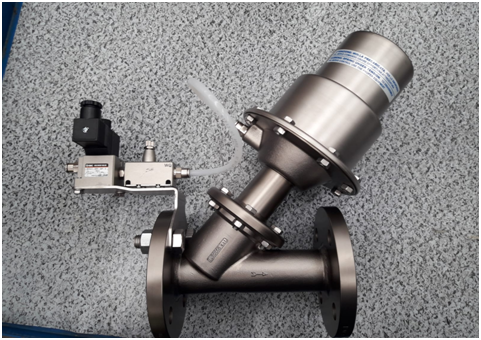

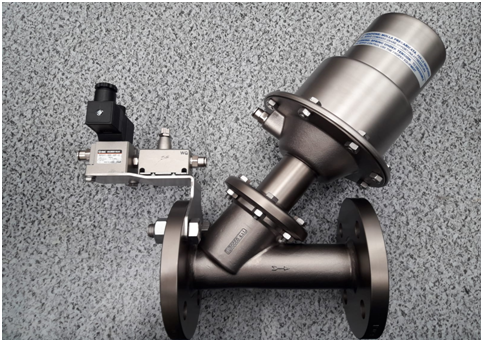

3) Now you must take the plate and set it on the flange (internal side)of the valve with two screws.

现在，您必须取下板并用两个螺钉将其安装在阀门的法兰（内侧）上

4) Now you can connect the hose , between the flow regulator and the valve. 现在，您可以在流量调节器和阀门之间连接软管。

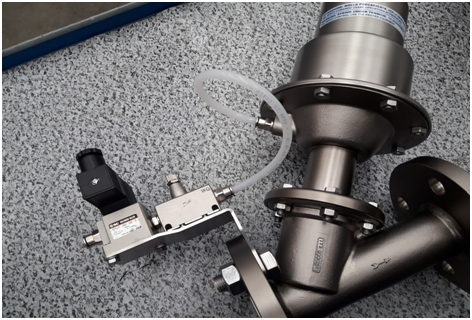

5) Final result最后结果。
